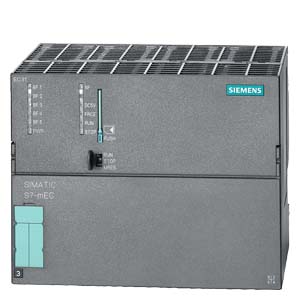

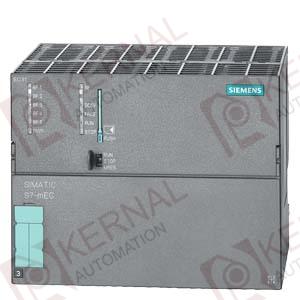

SIMATIC S7-MODULAR EMBEDDED CONTROLLER, EC31, 1 GB RAM, 2 GB FLASH DISK WITH PREINSTALLED SW: WINDOWS XP EMBEDDED; INTERFACES: 1. IF: 2X PROFINET, 2. IF: 1X FAST ETHERNET, 3. IF: 2 X USB, MMC SLOT, DOCUMENTATION ON CD/DVD, RESTORE CD/DVD |
| General information |
| Hardware product version |
04 |
| Firmware version |
V1.3 |
| PC configuration |
| Computer platform |
SIMATIC S7 modular embedded controller |
| Processor selection |
Intel Core Duo 1.2 GHz |
| Main memory |
1 GB RAM |
| Flash Disk |
2 Gbyte |
| Operating systems |
Windows XP embedded SP2 FP2007 |
| Supply voltage |
| Rated value, 24 V DC |
Yes |
| permissible range, lower limit (DC) |
20.4 V |
| permissible range, upper limit (DC) |
28.8 V |
| Mains buffering |
| ● Mains/voltage failure stored energy time |
5 ms |
| Input current |
| Rated value at 24 V DC |
800 mA; without backplane bus and USB power supply |
| Power losses |
| Power loss, typ. |
34 W |
| Memory |
| Type of memory |
256 KB non-volatile memory for retentive data |
| Work memory |
| ● Integrated |
1 Gbyte |
| Hardware configuration |
| Integrated power supply |
Yes |
| Interfaces |
| Number of USB interfaces |
2 |
| USB port |
2 x USB 2.0 high speed/high current |
| serial interface |
0 |
| Industrial Ethernet |
| ● Industrial Ethernet interface |
X1: 2 ports 10/100 Mbit/s (ERTEC-based) X2: 1 port 10/100 Mbit/s |
| EMC |
| Emission of radio interference acc. to EN 55 011 |
| ● Limit class A, for use in industrial areas |
Yes |
| Degree and class of protection |
| Degree of protection to EN 60529 |
|
| ● IP20 |
Yes |
| Standards, approvals, certificates |
| CE mark |
Yes |
| CSA approval |
Yes; Included in cULus |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| FM approval |
Yes |
| Ambient conditions |
| Operating temperature |
| ● Min. |
0 °C |
| ● max. |
50 °C |
| Storage/transport temperature |
| ● Min. |
-40 °C |
| ● max. |
70 °C |
| Vibrations |
| ● Operation, checked according to IEC 60068-2-6 |
Yes |
| ● Transport tested checked to IEC 60068-2-6 |
Yes |
| Shock test |
| ● checked according to IEC 60068-2-27 |
Yes |
| ● checked according to IEC 60068-2-29 |
Yes |
| Shock testing |
| ● checked according to IEC 60068-2-29 |
Yes |
| ● Operation, checked according to IEC 60068-2-29 |
Operation, tested according to IEC 60068-2-27 |
| ● Storage/transport, checked to IEC 60068-2-29 |
Yes |
| Dimensions |
| Width |
160 mm |
| Height |
125 mm |
| Depth |
115 mm |
| last modified: |
14.10.2014 |
