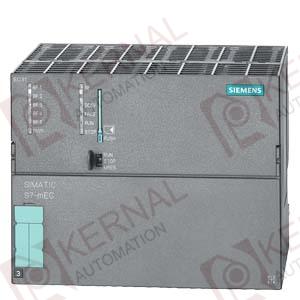

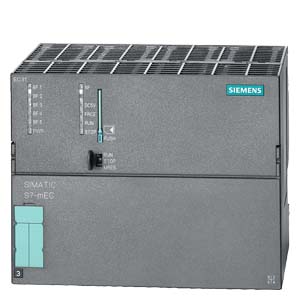

SIMATIC S7-MODULAR EMBEDDED CONTROLLER, EC31-RTX, 1 GB RAM, 2 GB FLASH DISK WITH PREINSTALLED SW: WINDOWS XP EMBEDDED; SIMATIC WINAC RTX, SIMATIC SOFTNET-S7/ LEAN, INTERFACES: 1. IF: 2X PROFINET, 2. IF: 1X FAST ETHERNET, 3. IF: 2 X USB, MMC SLOT, DOCUMENTATION ON CD/DVD, RESTORE CD/DVD |
| General information |
| Hardware product version |
04 |
| Firmware version |
V1.3 |
| PC configuration |
| Computer platform |
SIMATIC S7 modular embedded controller |
| Processor selection |
Intel Core Duo 1.2 GHz |
| Main memory |
1 GB RAM |
| Flash Disk |
2 Gbyte |
| Operating systems |
Windows XP embedded SP2 FP2007 |
| Installed software |
| ● Control |
SIMATIC WinAC RTX 2009 |
| ● Communication |
Yes |
| Supply voltage |
| Rated value, 24 V DC |
Yes |
| permissible range, lower limit (DC) |
20.4 V |
| permissible range, upper limit (DC) |
28.8 V |
| Mains buffering |
| ● Mains/voltage failure stored energy time |
5 ms |
| Input current |
| Rated value at 24 V DC |
800 mA; without backplane bus and USB power supply |
| Power losses |
| Power loss, typ. |
34 W |
| Memory |
| Type of memory |
512 KB non-volatile memory for retentive data |
| Work memory |
| ● Integrated |
1 Gbyte |
| CPU processing times |
| for bit operations, typ. |
0.004 µs; Typical |
| for fixed point arithmetic, typ. |
0.003 µs; Typical |
| for floating point arithmetic, typ. |
0.004 µs; Typical |
| CPU-blocks |
| DB |
| ● Number, max. |
Max. code size and max. data size: 4 MB each |
| ● Size, max. |
64 kbyte |
| FB |
| ● Number, max. |
Max. code size and max. data size: 4 MB each |
| ● Size, max. |
64 kbyte |
| FC |
| ● Number, max. |
Max. code size and max. data size: 4 MB each |
| ● Size, max. |
64 kbyte |
| OB |
| ● Number, max. |
Max. code size and max. data size: 4 MB each |
| ● Size, max. |
64 kbyte |
| ● Number of free cycle OBs |
1; OB 1 |
| ● Number of time alarm OBs |
1; OB 10 |
| ● Number of delay alarm OBs |
1; OB 20 |
| ● Number of time interrupt OBs |
9; OB 30-38 |
| ● Number of process alarm OBs |
1; OB 40 |
| ● Number of startup OBs |
2; OB 100, 102 |
| ● Number of asynchronous error OBs |
7; OB 80, 82-85, 86, 88 |
| ● Number of synchronous error OBs |
2; OB 121, 122 |
| Nesting depth |
| ● per priority class |
24 |
| ● additional within an error OB |
24 |
| Counters, timers and their retentivity |
| S7 counter |
| ● Number |
2 048 |
| Retentivity |
| — can be set |
Yes |
| — lower limit |
0 |
| — upper limit |
2 047 |
| — preset |
8 |
| Counting range |
| — can be set |
Yes |
| — lower limit |
0 |
| — upper limit |
999 |
| IEC counter |
| ● present |
Yes |
| ● Type |
SFB |
| S7 times |
| ● Number |
2 048 |
| Retentivity |
| — can be set |
Yes |
| — lower limit |
0 |
| — upper limit |
2 047 |
| Time range |
| — lower limit |
10 ms |
| — upper limit |
9 990 s |
| IEC timer |
| ● present |
Yes |
| ● Type |
SFB |
| Data areas and their retentivity |
| retentive data area, total |
512 KB |
| Flag |
| ● Number, max. |
16 kbyte |
| ● of which retentive without battery |
MB 0 to MB 16383 |
| ● Retentivity preset |
MB 0 to MB 15 |
| ● Number of clock memories |
8 |
| Data blocks |
| ● Number, max. |
Max. code size and max. data size: 4 MB each |
| ● Size, max. |
64 kbyte |
| Address area |
| I/O address area |
| ● Inputs |
16 kbyte |
| ● Outputs |
16 kbyte |
| of which, distributed |
| — Inputs |
8 kbyte |
| — Outputs |
8 kbyte |
| Process image |
| ● Inputs, adjustable |
16 kbyte |
| ● Outputs, adjustable |
16 kbyte |
| ● Inputs, default |
512 byte |
| ● Outputs, default |
512 byte |
| Subprocess images |
| ● Number of subprocess images, max. |
15 |
| Digital channels |
| ● Inputs |
128 000 |
| ● Outputs |
128 000 |
| Analog channels |
| ● Inputs |
8 000 |
| ● Outputs |
8 000 |
| Hardware configuration |
| Integrated power supply |
Yes |
| Time of day |
| Clock |
| ● Hardware clock (real-time clock) |
Yes; Resolution: 1 s |
| Clock synchronization |
| ● supported |
Yes |
| ● to PC-CP, slave |
Yes |
| ● on Ethernet via NTP |
Yes |
| Interfaces |
| Number of USB interfaces |
2 |
| USB port |
2 x USB 2.0 high speed/high current |
| serial interface |
0 |
| Industrial Ethernet |
| ● Industrial Ethernet interface |
X1: 2 ports 10/100 Mbit/s (ERTEC-based) X2: 1 port 10/100 Mbit/s |
| 1st interface |
| Interface type |
PROFINET |
| Physics |
2x RJ45 |
| Automatic detection of transmission speed |
Yes |
| Autonegotiation |
Yes |
| Autocrossing |
Yes |
| Number of connection resources |
32 |
| Functionality |
| ● MPI |
No |
| ● DP master |
No |
| ● DP slave |
No |
| ● PROFINET IO Device |
No |
| ● PROFINET IO Controller |
Yes |
| ● PROFINET CBA |
Yes |
| ● Open IE communication |
Yes |
| ● Point-to-point connection |
No |
| PROFINET IO Controller |
| ● Number of connectable IO devices, max. |
256 |
| ● Number of IO devices with IRT and the option "high flexibility" |
64 |
| ● IRT, supported |
Yes |
| ● Prioritized startup supported |
Yes |
| — Number of IO Devices, max. |
32 |
| ● Activation/deactivation of IO Devices |
Yes |
| — Maximum number of IO devices that can be activated/deactivated at the same time. |
8 |
| ● IO Devices changing during operation (partner ports), supported |
Yes |
| — Max. number of IO devices per tool |
8 |
| ● Send cycles |
Adjustable: 250 µs, 500 µs and 1 ms |
| ● Updating times |
250 µs - 128 ms (with signal cycle 250 µs); 500 µs - 256 ms (with signal cycle 500 µs); 1 ms - 512 ms (with signal cycle 1 ms) |
| Services |
| — PG/OP communication |
Yes |
| — S7 routing |
Yes |
| — S7 communication |
Yes |
| — Isochronous mode |
No |
| Address area |
| — Inputs, max. |
16 kbyte |
| — Outputs, max. |
16 kbyte |
| — User data per address area, max. |
2 kbyte |
| — User data consistency, max. |
256 byte |
| PROFINET CBA |
| ● acyclic transmission |
Yes |
| ● Cyclic transmission |
Yes |
| Open IE communication |
| ● Open IE communication, supported |
Yes |
| ● Number of connections, max. |
32 |
| ● Local port numbers used at the system end |
0, 20, 21, 23, 25, 80, 102, 135, 161, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535 |
| PROFINET functions |
| ● Detection of accessible nodes, supported |
Yes; DCP |
| ● Assignment of the IP address, supported |
Yes; DCP |
| ● Assignment of the device name, supported |
Yes; DCP |
| ● Topology recognition, supported |
Yes; LLDP, LLDP MIB, SNMP |
| ● Extended network diagnostics with Standard MIB II, supported |
Yes; Standard MIB II, SNMP |
| 2nd interface |
| Interface type |
Integrated Ethernet interface |
| Physics |
Ethernet RJ45 |
| Automatic detection of transmission speed |
Yes |
| Autonegotiation |
Yes |
| Autocrossing |
No |
| Number of connection resources |
32 |
| Functionality |
| ● PROFINET IO Controller |
No |
| ● PROFINET IO Device |
No |
| ● PROFINET CBA |
No |
| Communication functions |
| PG/OP communication |
Yes |
| Global data communication |
| ● supported |
No |
| S7 basic communication |
| ● supported |
No |
| S7 communication |
| ● supported |
Yes |
| ● as server |
Yes |
| ● As client |
Yes |
| Open IE communication |
| ● TCP/IP |
Yes; Via integrated PROFINET interface (X1) and loadable FBs |
| — Number of connections, max. |
32 |
| — Data length, max. |
8 192 byte |
| ● ISO-on-TCP (RFC1006) |
No |
| ● UDP |
Yes; Via integrated PROFINET interface (X1) and loadable FBs |
| — Number of connections, max. |
32 |
| — Data length, max. |
1 472 byte |
| Number of connections |
| ● overall |
64 |
| ● usable for PG communication |
|
| — reserved for PG communication |
1 |
| ● usable for OP communication |
|
| — reserved for OP communication |
1 |
| S7 message functions |
| Number of login stations for message functions, max. |
62; The alarm functions cannot currently be used for central bus modules |
| Process diagnostic messages |
Yes; Alarm_S |
| Test commissioning functions |
| Status/control |
| ● Status/control variable |
Yes |
| Forcing |
| ● Forcing |
No |
| Diagnostic buffer |
| ● present |
Yes |
| EMC |
| Emission of radio interference acc. to EN 55 011 |
| ● Limit class A, for use in industrial areas |
Yes |
| Degree and class of protection |
| Degree of protection to EN 60529 |
|
| ● IP20 |
Yes |
| Standards, approvals, certificates |
| CE mark |
Yes |
| CSA approval |
Yes; Included in cULus |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| FM approval |
Yes |
| Ambient conditions |
| Operating temperature |
| ● Min. |
0 °C |
| ● max. |
50 °C |
| Storage/transport temperature |
| ● Min. |
-40 °C |
| ● max. |
70 °C |
| Vibrations |
| ● Operation, checked according to IEC 60068-2-6 |
Yes |
| ● Transport tested checked to IEC 60068-2-6 |
Yes |
| Shock test |
| ● checked according to IEC 60068-2-27 |
Yes |
| ● checked according to IEC 60068-2-29 |
Yes |
| Shock testing |
| ● checked according to IEC 60068-2-29 |
Yes |
| ● Operation, checked according to IEC 60068-2-29 |
Operation, tested according to IEC 60068-2-27 |
| ● Storage/transport, checked to IEC 60068-2-29 |
Yes |
| Configuration |
| Configuration software |
| ● STEP 7 |
Yes |
| programming |
| Programming language |
| — LAD |
Yes |
| — FBD |
Yes |
| — STL |
Yes |
| — SCL |
Yes |
| — CFC |
Yes |
| — GRAPH |
Yes |
| — HiGraph® |
Yes |
| Dimensions |
| Width |
160 mm |
| Height |
125 mm |
| Depth |
115 mm |
| last modified: |
13.10.2014 |
