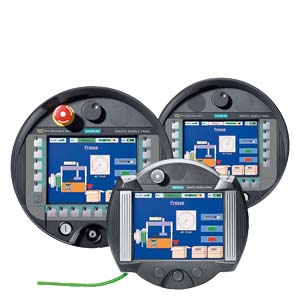

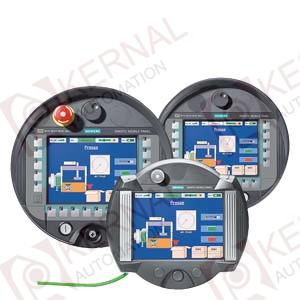

SIMATIC MOBILE PANEL 277 WITH INTEGRATED ENABLING BUTTON AND STOP BUTTON, CONFIGURABLE WITH WINCC FLEXIBLE STANDARD VERSION 2005 SP1 AND HIGHER OR TIA PORTAL V11 AND HIGHER |
| General information |
| Customer-specific configuration |
Yes |
| Display |
| Design of display |
TFT |
| Screen diagonal |
7.5 in |
| Size |
7.5" |
| Display type |
TFT, 65536 colors |
| Number of colors |
65 536 |
| Number of grayscales |
65 536 |
| Color type |
Colors |
| Resolution (pixels) |
| ● Horizontal image resolution |
640 |
| ● Vertical image resolution |
480 |
| ● Resolution (WxH in pixel) |
640 x 480 |
| Backlighting |
| ● MTBF backlighting (at 25 °C) |
50 000 h |
| Control elements |
| Operating options |
Keys and Touch |
| Function keys, programmable |
18 function keys, 18 with LEDs |
| Connection for mouse/keyboard/barcode reader |
USB / USB / USB |
| Keyboard |
| ● Number of function keys |
18 |
| ● Keys with LED |
Yes |
| ● freely inscribable membrane keys |
Yes |
| ● Number of function keys with LEDs |
18 |
| — Multi-key operation |
Yes |
| — Number of multi-key operations |
2 |
| ● System keys |
Yes |
| ● Number of configurable system keys |
18 |
| ● Numeric/alphabetical input |
Yes / Yes |
| — hexadecimal keyboard |
Yes |
| Touch operation |
| ● Touch screen |
analog, resistive |
| ● Design as touch screen |
Yes |
| Special operator controls |
| ● Stop button |
Yes |
| ● Acknowledgement button |
Yes |
| ● Key-operated switch |
No |
| ● Illuminated pushbutton |
No |
| ● Handwheel |
No |
| Supply voltage |
| Type of supply voltage |
DC |
| Supply voltage |
via connection box |
| Processor |
| Processor |
ARM, 520 MHz |
| Processor type |
ARM |
| Memory |
| Type |
Flash / RAM |
| Usable memory for user data |
6 MB usable memory for user data |
| Main memory |
|
| ● Capacity of main memory, maximum |
128 Mbyte |
| Time of day |
| Clock |
| ● Type |
Hardware clock, battery backup, synchronizable |
| ● Hardware clock (real-time clock) |
Yes |
| ● Software clock |
No |
| ● Battery-backed |
Yes |
| ● Synchronizable |
Yes |
| Interfaces |
| Interfaces |
1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) (max. 12 Mbit/s) |
| Number of RS 485 interfaces |
1 |
| ● Transmission rate, max. |
12 Mbit/s |
| Number of USB interfaces |
1 |
| USB port |
1 x USB |
| Multi Media Card slot |
1 MMC/SD card slot |
| Number of parallel interfaces |
0 |
| Industrial Ethernet |
| ● Industrial Ethernet interface |
1 x Ethernet (RJ45) |
| Protocols |
| PROFINET |
Yes |
| PROFINET IO |
Yes |
| Supports protocol for PROFIsafe |
No |
| PROFIBUS |
Yes |
| Protocols (Ethernet) |
| ● TCP/IP |
Yes |
| Further protocols |
| ● AS-i |
No |
| ● CAN |
No |
| ● INTERBUS |
No |
| ● MODBUS |
Yes |
| ● Data highway |
No |
| ● DeviceNet |
No |
| ● Local Operating Network |
No |
| ● SUCOnet |
No |
| ● other bus systems |
Yes |
| Degree and class of protection |
| IP65 enclosure |
Yes |
| Standards, approvals, certificates |
| Certifications |
CE, cULus, C-TICK, SIBE |
| CE mark |
Yes |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| Highest safety class achievable in safety mode |
| ● Performance level according to EN ISO 13849-1:2008 |
d |
| Ambient conditions |
| Drop height |
1.2 m |
| Operating temperature |
| ● Operation |
0 °C to 40 °C |
| Storage/transport temperature |
| ● Transport, storage |
-20 °C to 60 °C |
| Relative humidity |
| ● Operation, max. |
80 % |
| Operating systems |
| Operating system |
Windows CE |
| Configuration |
| Message indicator |
Yes |
| With alarm logging system (incl. buffer and acknowledgment) |
Yes |
| Process value display (output) |
Yes |
| Process value default (input) possible |
Yes |
| Recipe administration |
Yes |
| Configuration software |
| ● WinCC flexible Compact |
No |
| ● WinCC flexible Standard |
Yes |
| ● WinCC flexible Advanced |
Yes |
| ● WinCC Basic (TIA Portal) |
No |
| ● WinCC Comfort (TIA Portal) |
Yes |
| ● WinCC Advanced (TIA Portal) |
Yes |
| ● WinCC Professional (TIA Portal) |
Yes |
| ● Configuration tool |
WinCC flexible Standard Version 2005 SP1 or higher (to be ordered separately) |
| ● 2nd configuration kit |
WinCC flexible Standard |
| — Version |
Version 2005 SP 1 |
| — Configuration tool |
WinCC flexible |
| — Type |
Standard |
| Languages |
| Online languages |
| ● Number of online/runtime languages |
16 |
| Languages |
| ● Languages per project |
32 |
| Functionality under WinCC (TIA Portal) |
| Libraries |
Yes |
| Applications/options |
Internet Explorer, Sm@rtService, Sm@rtAccess |
| ● Connection point identification |
Yes |
| Number of Visual Basic Scripts |
Yes |
| Task planner |
Yes |
| Help system |
Yes |
| ● Number of characters per info text |
70 |
| Message system |
| ● Number of alarm classes |
32 |
| ● Number of messages |
4 000 |
| ● Bit messages |
Yes |
| ● Analog messages |
Yes |
| ● Number of bit messages |
4 000 |
| ● Number of analog messages |
4 000 |
| ● System messages HMI |
Yes |
| ● System messages PLC |
Yes |
| ● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) |
Yes |
| ● Message length (in characters) |
80 |
| ● Lines |
1 |
| ● Number of process values per message |
8 |
| ● Acknowledgment groups |
99 |
| ● Message indicator |
Yes |
| ● First/last value |
Yes |
| Recipe administration |
| ● Number of recipes |
300 |
| ● Data records per recipe |
500 |
| ● Entries per data record |
1 000 |
| ● Recipe memory |
64 KB integrated Flash, expandable |
| Variables |
| ● Number of variables per device |
2 048 |
| ● Number of variables per screen |
200 |
| ● Number of variables |
1 000 |
| ● Initial values |
2 048 |
| ● Limit values |
Yes |
| ● Multiplexing |
Yes |
| ● Structs |
Yes |
| ● Type Date & Time |
2 048 |
| Images |
| ● Number of configurable images |
500 |
| ● Permanent window/default |
Yes |
| ● Start screen configurable |
Yes |
| ● Image selection by PLC |
Yes |
| ● Image number in the PLC |
Yes |
| Image objects |
| ● Text objects |
10,000 text elements |
| ● Fields per image |
200 |
| ● Date/time fields |
200 |
| ● Return |
Yes |
| ● Graphics object |
Bit maps, icons, vector graphics |
| — Icons |
1 000 |
| Complex image objects |
| ● Status/control |
With SIMATIC S7 |
| ● dynamic objects |
Diagrams, bar graphs, sliders, analog display, invisible buttons |
| — Number of objects per project |
1 000 |
| — Number per image |
10 |
| ● Methods |
Trend / profile |
| ● Limit value lines |
Yes |
| ● Number of bars per chart |
10 |
| ● Limit value lines |
Yes |
| ● alphanumeric fields |
300 |
| ● alphanumeric fields per image |
200 |
| ● numerical fields |
2 048 |
| ● numerical fields per image |
200 |
| ● Password errors |
2 048 |
| ● Number of slides per image |
10 |
| ● Number of analog indicators per image |
10 |
| ● Number of visible switches per project |
200 |
| ● visible switches per image |
200 |
| ● hidden switches per image |
200 |
| ● Number of status switches per project |
200 |
| ● Button status switches per image |
200 |
| ● Number of selector switches per project |
200 |
| ● Selector switches per image |
200 |
| ● Number of decade switches per project |
200 |
| ● Decade switches per image |
200 |
| ● Number of signal lamps per project |
200 |
| ● Signal lamps per image |
200 |
| Attributes for dynamic objects |
| ● Color change |
Yes |
| ● X/Y movement |
Yes |
| ● Hide |
Yes |
| Lists |
| ● Number of text lists per project |
500 |
| ● Number of text lists per image |
200 |
| ● Number of entries per text list |
256 |
| ● Number of graphics lists per project |
400 |
| ● Number of graphic lists per image |
200 |
| ● Number of entries per graphics list |
256 |
| Archiving |
| ● Number of archives per device |
20 |
| ● Number of measuring points per project |
20 |
| ● Number of entries per archive |
10 000 |
| ● Message archive |
Yes |
| ● Process value archive |
Yes |
| ● Archiving methods |
|
| — Sequential archive |
Yes |
| — Short-term archive |
Yes |
| ● Memory location |
MultiMediaCard |
| ● Data storage format |
|
| — CSV |
Yes |
| ● Online evaluation |
|
| — via trends |
Yes |
| Filters |
| ● cyclic |
Yes |
| ● Tolerance |
Yes |
| ● Change |
Yes |
| Security |
| ● Number of user groups |
50 |
| ● Number of user rights |
32 |
| ● Password export/import |
Yes |
| Logging through printer |
| ● Recording/Printing |
Alarms, report (shift report), color print, hardcopy |
| Transfer (upload/download) |
| ● Transfer of configuration |
MPI/PROFIBUS DP, USB, Ethernet, automatic transfer recognition |
| Process coupling |
| ● Connection to controller |
S5, S7-200, S7- 300/400, TI 505, SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus), weitere Fremdtreiber siehe Kapitel "Systemkopplungen" |
| ● S7-1200 |
Yes |
| ● S7-1500 |
Yes |
| ● S7-200 |
Yes |
| — PPI (point-to-point) |
Yes |
| — PPI network |
Yes |
| — MPI |
Yes |
| — PROFIBUS DP |
Yes |
| — Ethernet |
Yes |
| ● S7-300/400 |
Yes |
| — MPI |
Yes |
| — PROFIBUS DP |
Yes |
| — PROFINET |
Yes |
| ● S5 |
Yes |
| — serial |
Yes |
| — PROFIBUS DP |
Yes |
| ● TI 505 |
Yes |
| ● Allen Bradley (DF1) |
Yes |
| ● Allen Bradley (DF485) |
Yes |
| ● Mitsubishi (FX) |
Yes |
| ● Mitsubishi (MP4) |
Yes |
| ● OMRON (LINK/Multilink) |
Yes |
| ● Modicon (Modbus) |
Yes |
| ● GE-Fanuc (SNP) |
Yes |
| Functions |
| ● TAB sequence |
Yes |
| ● Calculating functions |
Yes |
| ● Animate |
Yes |
| Service tools/configuration aids |
| ● Clean screen |
Yes |
| ● Touch calibration |
Yes |
| ● Backup/restore |
Yes |
| ● Simulation |
Yes |
| ● Device switchover |
Yes |
| ● Delta transfer |
Yes |
| I/O / Options |
| I/O devices |
Printer, barcode reader |
| ● MultiMediaCard |
Yes |
| ● SD card |
Yes |
| ● USB memory |
Yes |
| Additional software components loadable |
Yes |
| Mechanics/material |
| Type of housing (front) |
plastic |
| Dimensions |
| Housing diameter/depth (mm) |
Dia 290 mm / D 103 mm |
| Weights |
| Weight (without packaging) |
1.7 kg |
| other |
| free hotline |
Yes |
| Warranty period |
1 y |
| last modified: |
08.09.2014 |
